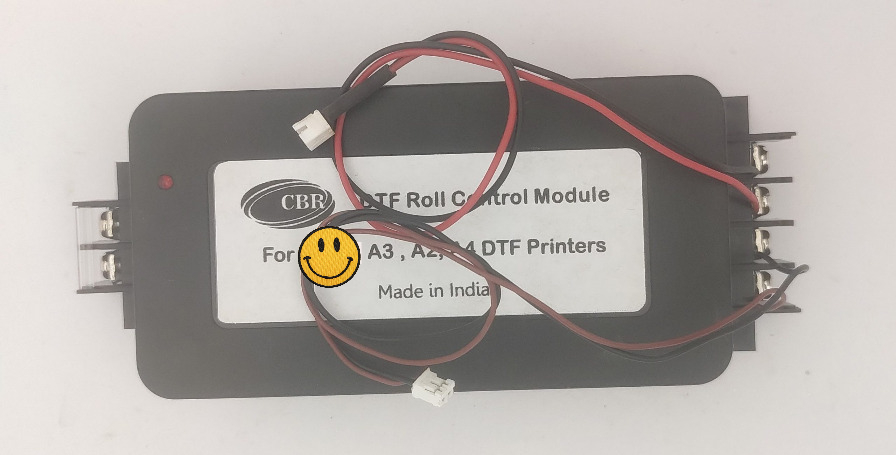

DTF Roll Control module is used in based A3 / A4 DTF printer, roll to roll printers to feed film forward or backward after printing .

➜ Forward the roll film in order to cut the printed part off

➜ Backward the roll film to save the wasted margin

Such operation is necessary for cutting of film as well as also for reducing wastage of expensive DTF films.

CBR Roll control module equipped with 4 key remote control. 2 key for forward move and another 2 key for backward move . So if one button fail though you can carry on your printing business and no need to order new remote control . Time and Money Saving .

This single module is sufficient for almost all printer models , No need  to order separate module for separate printer models .

Easy to install . A little technical knowledge is needed .

Specifications:

• Voltage : 100- 250V AC(Mains)
• Power Consumption : 30-40 Watt
• Features: No Error In Printer, No Jam, Smooth Feeding
• Connections : AC input -2 Wires , Printer Main board : 2 wires , PF Motor : 2 Wires Connections Diagram provided with manual.
• Suitable for Almost all Model of A3 , A2 and A4 printer . Universal Device.All in One
• Size : 160mm (L) x 65mm(W) x 40mm(H)
• Weight : 300 gram (Net)

Remote Control Operation:

• 4 key remote control Provided.
• A & B button for Paper Forward Feed.
• C & D button for Paper Reverse Feed.
• 4 buttons are  provided because in case two button fails then customer don’t need to buy whole new remote … work can be continue by another buttons  (redundancy).
• Remote control Range : 4 meter.
• Remote Frequency : 433 / 315 Mhz .
• Battery Included in remote.

Application:

• A3 or A4 DTF / Film Printer / Polyester Film Printer .
• A3 or A4  Banner Printer
• Roll to Roll Printer.
• A3 / A4 Eco Solvent Printer
• To reduce waste of  Film in DTF

Note :

1. During normal printing module can be kept power off . Printer will behave normal even if there is no power provided to module .
2. I mean you can keep module on or off whatever when you do normal printing . But for feeding film forward or backward module must be powered on .
3. Device is Tested on :L1800 /L800 / L805 /1390 / 1400 / 1410 / R1900 / R2000 / R2880 / R1800 / R2400 / R1390 / R1430 / R270 / R390 / R390 and RX590 .
4. Wireless Remote and roll control module are uniquely paired with each other  . You can use multiple printers with multiple roll control modules side by side (in Same room) . There is no interference of adjacent module remotes with others.
